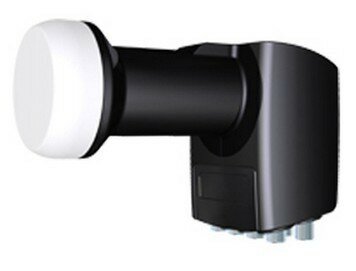

Inverto IDLB-OCTL40-OOOOO-OP. RF aansluitingstype: F. Stroomverbruik: 210 mA. Breedte: 74 mm, Diepte: 140,5 mm, Hoogte: 98,8 mm. Kleur van het product: Zwart
Specifically designed for the European DTH markets, this LNB provides optimized reception capabilities. This LNB allows for the connection of maximum eight Set Top Boxes with Single Tuner (or to four 4 STBs with Twin Tuner) - without the need of an external Multi-Switch. It is ready for High Definition transmissions and provides excellent Noise Figure performance. Designed to meet strict specifications and manufactured to the highest industry quality standards, this LNB is an ideal solution for the satellite broadcast reception across Europe.
Main Features:
- Low Phase Noise, DVB-S2 (HDTV) compliant.
- Low Noise Figure (0.2dB).
- Low Power Consumption.
- Very high Cross Polarization Isolation.
- Very high Frequency Stability.
| Input frequentiebereik |
10,7 - 11,7 GHz |
| Afmetingen verpakking (BxDxH) |
Nvt |
| Output frequentiebereik |
950 - 1950 |
| Gewicht pakket |
Nvt |
| Oscillatie frequentie |
Nvt |
| Winst |
55 dB |
| Geluid figuur |
0,2 dB |
| Soort |
Nvt |
| Kleur |
Nvt |
| Diameter |
Nvt |
| Signaal/ruis-verhouding |
Nvt |
| Ingangsbereik hoge frequentieband |
Nvt |
| Ingangsbereik lage frequentieband |
Nvt |
| Low band LO frequency |
Nvt |
| Uitgangsbereik lage frequentieband |
Nvt |
| Uitgangsbereik hoge frequentieband |
Nvt |
| High band LO frequency |
Nvt |
| Bereik conversiewinst |
Nvt |
| Conversieversterking |
Nvt |
| Voltage Standing Wave Ratio (VSWR) |
Nvt |
| Output impedance |
Nvt |
| Image rejection |
Nvt |
| Valse uitstoot |
Nvt |
| Local Oscillator (LO) phase noise (10 kHz) |
Nvt |
| Gain ripple (±) |
Nvt |
| Initial accuracy (±) |
Nvt |
| Temperature drift (±) |
Nvt |
| Supply voltage Cb (horizontal polarization) |
Nvt |
| Supply voltage Ca (vertical polarization) |
Nvt |
| Cross-polarization isolation |
Nvt |
| Compression point (1 dB) |
Nvt |
| Control signal Cc (band switching) |
Nvt |
| Temperatuur, in bedrijf |
Nvt |
| RF aansluitingstype |
F |
| Aantal RF-poorten |
8 |
| Stroomverbruik |
210 mA |
| Kleur van het product |
Zwart |
| Diameter voedingshoorn |
Nvt |
| Breedte |
74 mm |
| Hoogte |
98,8 mm |
| Diepte |
140,5 mm |
| Gewicht |
256 g |
