Quad LNB's

Quad-LNBs
Weergave:


Bezig met laden...

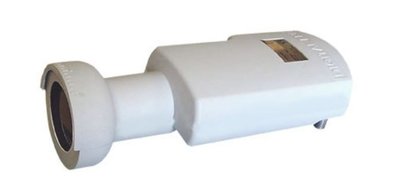

Global Invacom QDH-031 Quad lnb

Snel bekijken

Bestellen

Op voorraad
Global Invacom QDH-031 Quad lnb

Global Invacom QDH-031 Quad lnb

€ 72,95

Global Invacom F905002 QDH-031 Quad lnb


A high performance universal LNB with an integrated feed-horn, and 4 independent switched outputs. Typically used with fixed dishes to supply 4 receivers, in areas where the signal strength is poor.

Some customers find that the Invacom Quad LNBs outperform the single and twin LNB in low signal areas.

Input Frequency 10.7 - 12.75 GHz
Output Frequency 950 - 2150 MHz
Noise Figure 0.3dB typical
Gain 50 - 60dB
Interface 40mm clamp
Ideal dish F/D 0.6

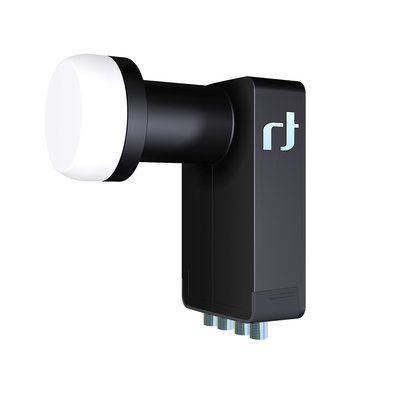

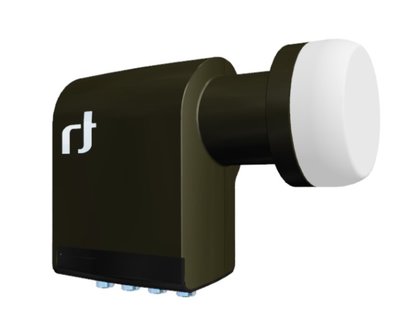

Inverto IDLB-QUDL40-Premium Black Quad 40mm Lnb

Snel bekijken

Bestellen

Inverto IDLB-QUDL40-Premium Black Quad 40mm Lnb

Inverto IDLB-QUDL40-Premium Black Quad 40mm Lnb

€ 28,95

Inverto IDLB-QUDL40-PREMU-OPP. RF aansluitingstype: F. Kleur van het product: Zwart

This high-end LNB was specially selected from our production line and sets new standards of quality and reliability. It enables the reception of signals from one satellite and its distribution to maximum four Set Top Boxes with Single Tuner (or two Set Top Boxes with Twin Tuner). It is ready for High Definition transmissions and provides excellent Noise Figure performance. Designed to meet strict specifications and manufactured to the highest industry quality standards, this LNB is an ideal solution for satellite broadcast reception across Europe.

Main Features

- Very low Noise Figure
- Low Phase Noise, DVB-S2 (HDTV) compliant
- Low Power Consumption
- High Cross Polarization Isolation
- High Frequency Stability


Input frequentiebereik 10,7 - 11,7 GHz
Afmetingen verpakking (BxDxH) Nvt
Output frequentiebereik 950 - 1950
Gewicht pakket Nvt
Oscillatie frequentie Nvt
Winst 55 dB
Geluid figuur 0,2 dB
Soort Nvt
Kleur Nvt
Diameter Nvt
Signaal/ruis-verhouding Nvt
Ingangsbereik hoge frequentieband Nvt
Ingangsbereik lage frequentieband Nvt
Low band LO frequency Nvt
Uitgangsbereik lage frequentieband Nvt
Uitgangsbereik hoge frequentieband Nvt
High band LO frequency Nvt
Bereik conversiewinst Nvt
Conversieversterking Nvt
Voltage Standing Wave Ratio (VSWR) Nvt
Output impedance Nvt
Image rejection Nvt
Valse uitstoot Nvt
Local Oscillator (LO) phase noise (10 kHz) Nvt
Gain ripple (±) Nvt
Initial accuracy (±) Nvt
Temperature drift (±) Nvt
Supply voltage Cb (horizontal polarization) Nvt
Supply voltage Ca (vertical polarization) Nvt
Cross-polarization isolation Nvt
Compression point (1 dB) Nvt
Control signal Cc (band switching) Nvt
Temperatuur, in bedrijf Nvt
RF aansluitingstype F
Aantal RF-poorten 4
Stroomverbruik Nvt
Kleur van het product Zwart
Diameter voedingshoorn Nvt
Breedte 59,5 mm
Hoogte 109,5 mm
Diepte 143 mm
Gewicht 243 g
Breedte van de verpakking Nvt
Diepte van de doos Nvt
Hoogte van de verpakking Nvt

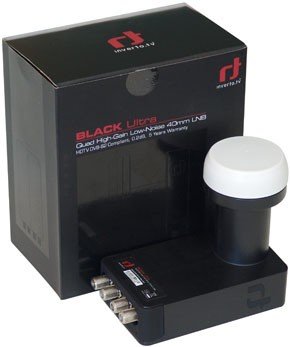

Inverto IDLB-QUDL40-Ultra Black Quad 40mm Lnb

Snel bekijken

Bestellen

Inverto IDLB-QUDL40-Ultra Black Quad 40mm Lnb

Inverto IDLB-QUDL40-Ultra Black Quad 40mm Lnb

€ 39,95

Inverto IDLB-QUDL40-ULTRA-OPP. RF aansluitingstype: F. Kleur van het product: Zwart

This LNB is a high performance product addressing the need for superior reception under the edges of the satellite footprint. Thanks to its novel front end design and superior components, this LNB provides higher conversion gain yet with lowest noise figure and best phase noise performance. The combination of higher spec components, excellent cross polarization isolation and advanced filter design enables improved handling of interfering spurious. All in all, this LNB provides a leap in the overall reception performance compared with standard LNBs. The LNB enables the reception of signals from one satellite and its distribution to maximum four Set Top Boxes with Single Tuner (or two STBs with Twin Tuner) and is ready for High Definition transmissions. Designed to meet strict specifications and manufactured to the highest industry quality standards, this LNB is an ideal solution for satellite broadcast reception across Europe.

Main Features

- Superior Phase Noise performance, DVB-S2 (HDTV) compliant
- Superior Noise Figure
- Extremely high Cross Polarization Isolation
- Very low Spurious Levels
- Higher Conversion Gain
- Ultimate Reliability

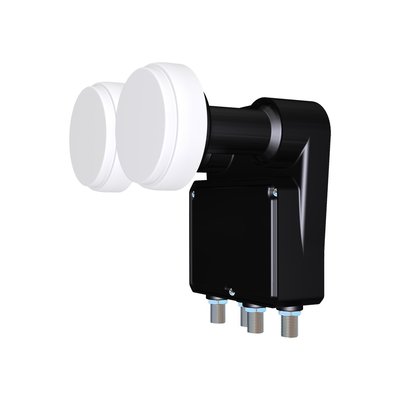

Inverto IDLB-QUDM21-MN006 Monoblock Quad LNB 6° Astra 19.2 / 13 ° Hotbird

Snel bekijken

Bestellen

Inverto IDLB-QUDM21-MN006 Monoblock Quad LNB 6° Astra 19.2 / 13 ° Hotbird

Inverto IDLB-QUDM21-MN006 Monoblock Quad LNB 6° Astra 19.2 / 13 ° Hotbird

€ 79,95

6° Monoblock Quad LNB voor Astra en Hotbird (19.2° und 13°)

Inverto IDLB-QUDM21-MNOO6-8PP. RF aansluitingstype: F. Stroomverbruik: 250 mA. Diameter voedingshoorn: 2,3 cm, Breedte: 122,5 mm, Diepte: 100 mm. Kleur van het product: Zwart, Wit

Specifically designed for the European DTH markets, this Monoblock LNB allows for dual satellite reception. It can be used for satellite broadcast reception (on an 80cm dish antenna) of any two satellites spaced with 6°. This LNB enables the signal distribution to maximum four Set Top Boxes with Single Tuner (or two STBs with Twin Tuner). It is optimized for High Definition transmissions and provides excellent Noise Figure performance. Designed to meet strict specifications and manufactured to the highest industry quality standards, this LNB is an ideal solution for satellite broadcast reception across Europe.

Main Features
- Low Phase Noise, DVBS2 (HDTV) compliant
- Low Noise Figure (0.2 dB)
- Low Power Consumption
- Very high Cross Polarization Isolation
- Very high Frequency Stability



Input frequentiebereik 11,7 - 12,75 GHz
Afmetingen verpakking (BxDxH) Nvt
Output frequentiebereik 1100 - 2150
Gewicht pakket Nvt
Oscillatie frequentie 10.6 GHz
Winst 65 dB
Geluid figuur 0,7 dB
Soort Nvt
Kleur Nvt
Diameter 2,3 cm
Signaal/ruis-verhouding Nvt
Ingangsbereik hoge frequentieband 11,7 - 12,75 GHz
Ingangsbereik lage frequentieband 10,7 - 11,7 GHz
Low band LO frequency 9,75 GHz
Uitgangsbereik lage frequentieband 950 - 1950 MHz
Uitgangsbereik hoge frequentieband 1100 - 2150 MHz
High band LO frequency 10,6 GHz
Bereik conversiewinst 50 - 65 dB
Conversieversterking 65 dB
Voltage Standing Wave Ratio (VSWR) 2.5:1
Output impedance 75
Image rejection 40 dBmW
Valse uitstoot -60 dBmW
Local Oscillator (LO) phase noise (10 kHz) -90 dBc/Hz
Gain ripple (±) 0,75 dB
Initial accuracy (±) 1 MHz
Temperature drift (±) 3 MHz
Supply voltage Cb (horizontal polarization) Nvt
Supply voltage Ca (vertical polarization) Nvt
Cross-polarization isolation 22 dB
Compression point (1 dB) Nvt
Control signal Cc (band switching) Nvt
Temperatuur, in bedrijf -30 - 60 °C
RF aansluitingstype F
Aantal RF-poorten 4
Stroomverbruik 250 mA
Kleur van het product Zwart, Wit
Diameter voedingshoorn 2,3 cm
Breedte 122,5 mm
Hoogte 135,1 mm
Diepte 100 mm
Gewicht 485 g
Breedte van de verpakking Nvt
Diepte van de doos Nvt
Hoogte van de verpakking Nvt

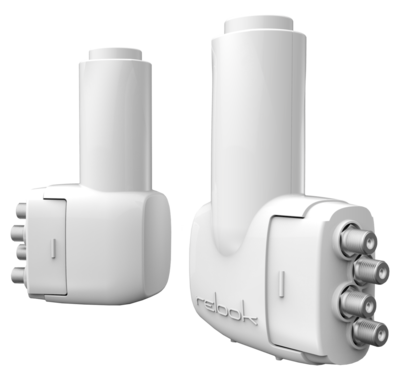

Relook RE-QD1EC Quad Slim Feed Easy Connect LNB

Snel bekijken

Bestellen

Relook RE-QD1EC Quad Slim Feed Easy Connect LNB

Relook RE-QD1EC Quad Slim Feed Easy Connect LNB

€ 29,95

Relook RE-QD1EC Quad Slim Feed Easy Connect LNB

Venton EXL-Q Quattro Rocketfeed lnb 23mm

Snel bekijken

Bestellen

Op voorraad
Venton EXL-Q Quattro Rocketfeed lnb 23mm

Venton EXL-Q Quattro Rocketfeed lnb 23mm

€ 15,95

Venton EXL-Q Quattro Rocketfeed lnb 23mm

Venton EXL-QS Quad Rocketfeed lnb 23mm

Snel bekijken

Bestellen

Op voorraad
Venton EXL-QS Quad Rocketfeed lnb 23mm

Venton EXL-QS Quad Rocketfeed lnb 23mm

€ 21,95

Venton EXL-QS Quad Rocketfeed lnb 23mm
